Water Cycling System Booster Pipe Pump

FOB Price:

US 280-7300 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

2000 Set/Sets per Month

Port:

Ningbo, Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

YONJOU

Products Model:

ISG,IRG,ISW

Products Details
Company Profile

Quick Details

Brand Name: YONJOU

Model Number: ISG,IRG,ISW

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Standard plywood wooden case or carton for Water Cycling System Booster Pipe Pum
Delivery Detail: 10 days from receiving payment (according to order quantity)

Specifications

Water Cycling System Booster Pipe Pump

Product Description

Summarize:

1. Water Cycling System Booster Pipe Pump is a high-effective energy-saving product designed by YONJOU.

2. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved.

3. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump, extending the duration and ensuring the operation place clean and tidy.

4. Widely used in industrial and cities’ water supply and drainage, high buildings’ booster water supply, gardens irrigation, fire-fighting booster, remote water supply, warming systems, circular booster of cold&hot water in bath rooms as well as in competitions of equipments.

5. The pump, according to the operation condition of the worksite, may be vertically, horizontally etc. and also according to the requirements for the flow and stroke, mounted in parallel and/or in series to increase the needed flow and stroke.

6. The flow range is 1.1-2400m3/h and the stroke range 8-160m and there are basic type, by-pass type, A B C cutting type etc. And per the different flow medium and temperature, IRG/IRGB/ISWR hot water pump, IHG/IHGB/ISWH chemical pump and YG/YGB/ISWB oil pump etc. Series products. of the same type and same property data have been designed and made.

Product details:

Working Principle:	Centrifugal
Main applications:	Water (oil, chemical, contact us)
Driver:	Electric motor
Power Specs:	220V/240V380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	100℃ (212°F)
Type of connection:	Flange
Casing:	Cast iron, Stainless steel
Impeller:	Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Maximum drive rating:	250KW(340HP)
Maximum caliber:	500mm(20inch)
Maximum discharge-side pressure:	1.6MPa(16bar)
Maximum head:	160m(524.8ft)
Flow rate range:	1.1-2400m3/h(4.8-10560US.GPM)
Pump type:	Water, Hot water type, oil type, chemical type

Performance data:

MODEL	CAPACITY	HEAD	EFFECIENCY	POWER
MODEL	(m 3 /h)	(m)	(%)	(kw)
15-80	1.5	8	34	0.18
20-110	2.5	15	34	0.37
20-160	2.5	32	25	0.75
25-110	4	15	42	0.55
25-125	4	20	36	0.75
25-125A	3.6	16	35	0.55
25-160	4	32	32	1.5
25-160A	3.7	28	31	1.1
32-125	5	20	44	0.75
32-125A	4.5	16	43	0.5
40-100	6.3	12.5	54	0.55
40-100A	5.6	10	52	0.37
40-125	6.3	20	46	1.1
40-125A	5.6	16	45	0.75
40-160	6.3	32	40	2.2
40-160A	5.9	28	39	1.5
40-160B	5.5	24	38	1.1
40-200	6.3	50	33	4
40-200A	5.9	44	31	3
40-200B	5.3	36	29	2.2
40-250	6.3	80	28	7.5
40-250A	5.9	70	28	5.5
40-250B	5.5	60	27	4
40-100(I)	12.5	12.5	62	1.1
40-100(I)A	11	10	60	0.75
40-125(I)	12.5	20	58	1.5
40-125(I)A	11	16	57	1.1
40-160(I)	12.5	32	52	3
40-160(I)A	11.7	28	51	2.2
40-160(I)B	10.4	22	50	1.5
40-200(I)	12.5	50	46	5.5
40-200(I)A	11.7	44	45	4
40-200(I)B	10.6	36	44	3
40-250(I)	12.5	80	38	11
40-250(I)A	11.6	70	38	7.5
40-250(I)B	10.8	60	37	7.5
40-250(I)C	10	52	36	5.5
50-100	12.5	12.5	62	1.1
50-100A	11	10	60	0.75
50-125	12.5	20	58	1.5
50-125A	11	16	57	1.1
50-160	12.5	32	52	3
50-160A	11.7	28	51	2.2
50-160B	10.4	22	50	1.5
50-200	12.5	50	46	5.5
50-200A	11.7	44	45	4
50-200B	10.6	36	44	3
50-250	12.5	80	38	11
50-250A	11.6	70	38	7.5

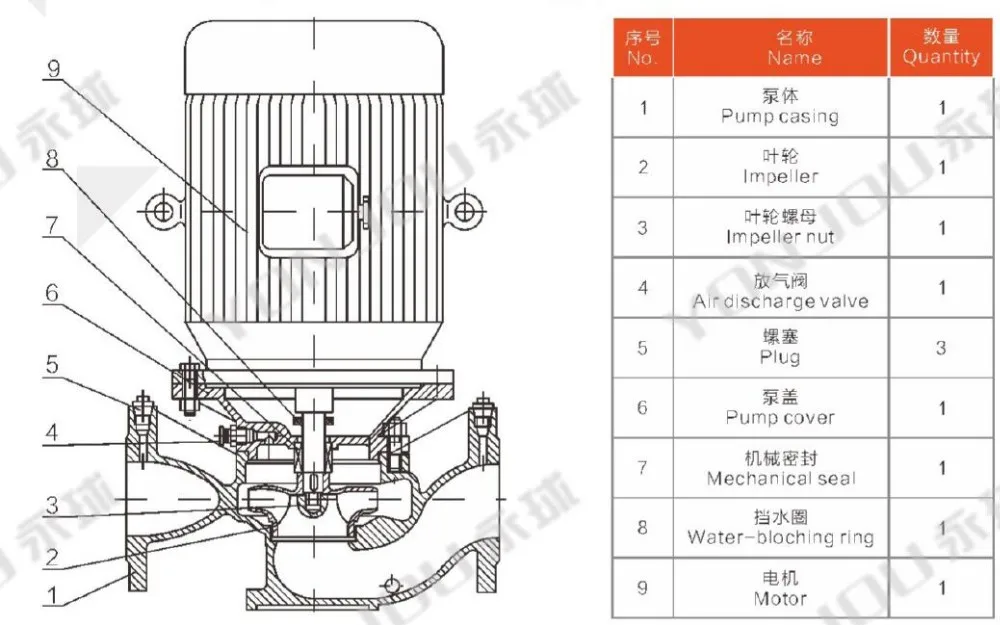

Vertical Type:

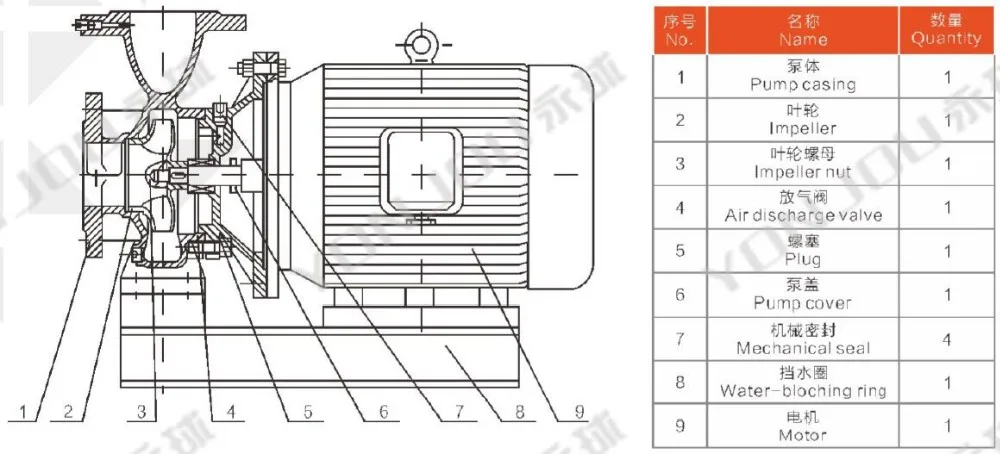

Horizantal Type:

TESTING

Zhejiang yonjou Technology Co., Ltd. is a research and development, production, sales in the valve products supporting the production of complete sets of equipment, sales, investment and financial institutions modernized enterprise diversification.
Permanent ball brand was founded in 1989, is a region of southern Zhejiang earliest established brand valve, Wenzhou well-known trademark, famous trademark of Yongjia county. 2008 new start new orange smile trademark, pursuing new vitality to smile, to service for the foundation, and strive to be the permanent ball into the valve industry in national brand globalization.
Adhering to the "bigger and stronger" spirit, the company has passed the ISO9001 international quality system, the detection of the EU CE certification, SGS, BV, TUV certification, UTS product field, and has a number of national patents, products by PICC underwriting quality, the company continuously over the years has been rated as "ICBC AAA credit enterprise", Zhejiang province "Shou contract re credit units", "Zhejiang Province integrity of private enterprises", "science and technology enterprises in Zhejiang province", "Zhejiang Province valve industry quality brand", "Wenzhou famous trademark", "Yongjia county famous trademark", "Yongjia star enterprise", "Yongjia science and technology project implementation unit" etc.. Products are exported to Germany, American permanent ball, Britain, Russia, South Korea, Japan, Australia, Brazil, Indonesia, Singapore, Romania, the United Arab Emirates, Iran, Egypt and other 180 countries and regions. To provide products and services for CNPC, SINOPEC, ABB, SIEMENS, ARITA, GRUNDFOS, KSB, HANIL, JC, KENT, WVODESIGNS, MAIN, ITT and other Multi-National Corporation, and many times the ball directly to the permanent brand to enter the bidding project and the government procurement list.
